Concrete mixer truck introduction

Concrete mixing truck is composed of automobile chassis and specialized concrete mixing device.  The production of concrete mixer truck chassis is mostly used as grade B common chassis provided  by manufacturers. Its special institutions mainly including the power lifter, before and after the mixing  drum bracket, deceleration machine, hydraulic system, mixing barrel, operating mechanism, cleaning  system, etc. Working principle is that power is taken from chassis, and drives variable pump of the  hydraulic system, changing mechanical energy into hydraulic energy to quantitative motor, then  the motor drives reducer, then to mixing device, for mixing concrete.

2CBM Concrete mixer truck parameter

Product:：2CBM concrete mixer truck	engine model：SF168-2
Chassis model：SF2020G	engine type: Forced circulation cooling
Total weight：（kg）3495	engine output：（L）1.595
Overall dimention：5600*1750*2900	engine power：（kw）22
V*B*H（mm）	Max.turning：(r/min）3200
Axle base：（mm）2800	drum capacity：（m³）3.9
Front axle：（mm）1000	Max.mixing Vol.：（m³）2
Rear overhang：（mm）1800	input speed：（m³）≥0.5
gradeability：25	output：（m³）≥0.8
Max.machine speed：（km/h）≤50	max.turning speed：（r/min）6-10
Min.turning radius：（m）≤15	drum tilt angle：（°）16
Clutch:double disc jointed	Max.drum Dia.（mm）ф1560
Drive type：belt drive	reducer：HJ20043
Drive way：rear wheel	hydraulic pump：32 gear pump
Turning type: steering wheel	hydraulic motor：cycloid motor
Machien brake：Braking after single line	water tank Vol.：（L）180
Brake：rear wheel	Water supply：air pressure
tire：700-16

2CBM Concrete mixer truck feature

1.mixing drum is big enough, adequate transportation.

2.vehicle is small in size, strong horsepower, high speed of input and output.

3.tanks is made of low alloy materials with high strengthen and wear resistance, greatly improving the service life of the vehicle.

4.wash conveniently.

5.Operated conveniently, with both sides operated.

6.Reasonable designed input and output: adopts streamline design, guarantee the fluency and no leakage phenomenon.

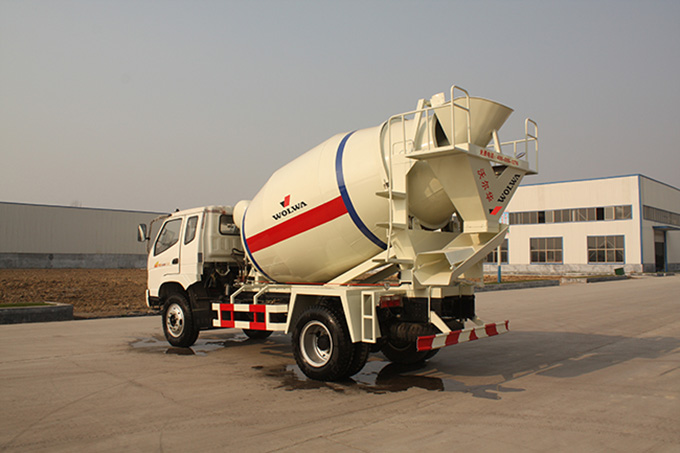

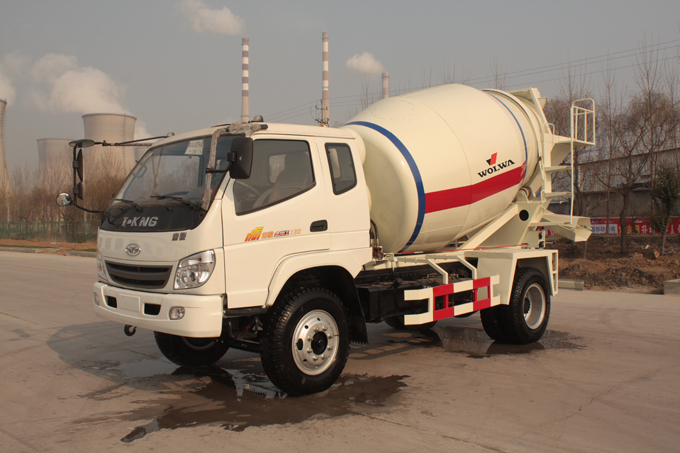

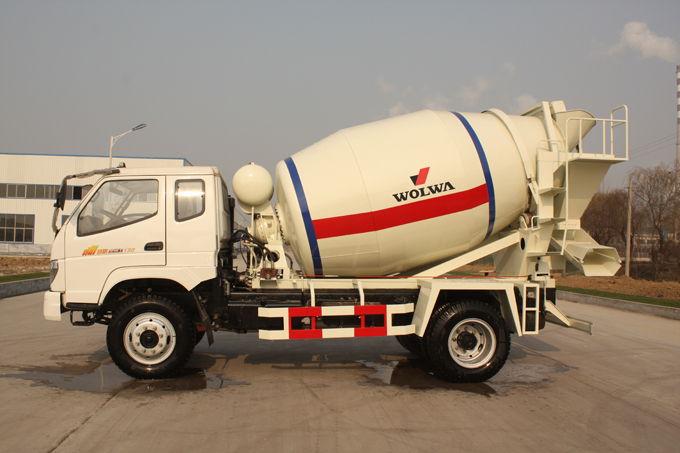

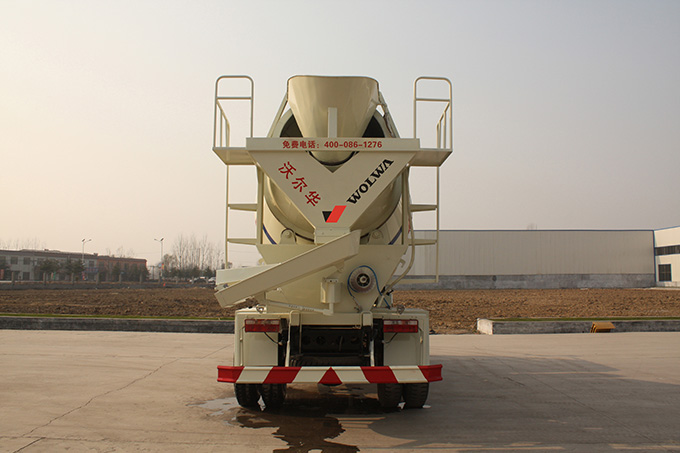

2CBM Concrete mixer truck picture
